12V relay tester

Name: 12V relay tester
Brand: Topwe-Auto Technology Co. Ltd
SKU: 6060
Price: 8 USD
Availability: InStock

$8.00 ~~$10.00~~

12V relay tester

Received successfully

Coupon Code

CONTINUE SHOPPING

Description

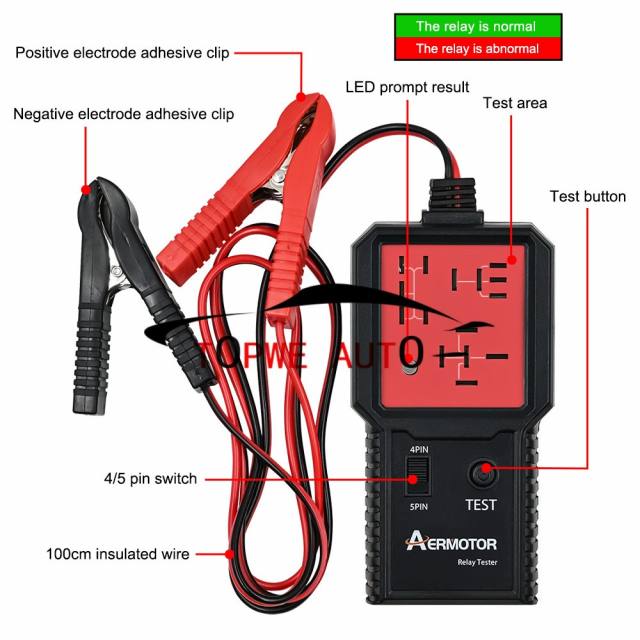

AERMOTOR Relay Tester can quickly detect whether your relay is working properly. It is easy to use and suitable for automotive relays on the market. It supports 12V relay testing

During testing, the equipment needs to be connected to a 12V car battery. When testing, turn the switch to 4PIN or 5PIN according to the relay's pin position. Press the test button and the tester will light up the green LED and flash, indicating that the relay is working. If the test button is pressed and the red LED is on, it indicates that the relay is not working.

Operating instructions:

During the test, clamp the red clip onto the positive pole of the battery, while the black clip onto the negative pole of the battery

When testing a 12V relay, it needs to be connected to a 12V battery,

After connecting to the power supply, the device turns on a red light, which allows for the insertion of a relay

Test the 4-pin relay to set the switch to 4PIN, and test the 5-pin relay to set the switch to 5PIN

After connecting the relay and adjusting the foot switch, you can press the button

During the 6 test, if the foot position is incorrect or the relay is damaged, the red LED will light up during the test.

When the foot position is set correctly, the tester will light up the green LED and flash the green light 10 times to indicate that the relay is working.
