Lonsdor LKE Smart Key Emulator 5 in 1 for Lonsdor K518ISE/K518S Key Programmer Supports Offline Calculation

LKE is a car key emulator newly released by Shenzhen Lonsdor Technology co.,ltd, as an ancillary product for the K518 device. It supports functions such as collect data(sent from automobile ignition coil) to detect the coil fault and decode car keys; simulate key chips (4D and 46 chips are supported currently, more chip types to be continued). Its lightweight and convenient, and can match all the vehicle models with 4D or 46 chips by working with K518. Meanwhile, LKE adopts a low-power design and has a CR2032 button battery installed externally, which is easy to replace batteries and can avoid damage to the casing. It can be upgraded through K518.

Lonsdor LKE Car Key Emulator Highlights:

1. Helper of K518ISE, K518S
2. Smart key offline programming by OBD, no need for network
3. Program Hyundai/Kia without PIN code
4. Program BYD without PIN code
5. Program Porsche Cayman, Boxster without PIN code
6. Program Mitsubishi (46/47) all key lost by OBD
7. Generate chip, Copy chip, Decode chip, Simulate and convert chip
8. Lonsdor LKE Smart Key Emulator=SKE-LT Smart Key Emulator 4pcs+ SKE-LT-DSTAES 128 Bit Smart Key Emulator 1pc

Lonsdor LKE Smart Key Emulator Functions:

1.Simulate key chip
Boot K518 device, place LKE into K518 card slot, go to "Special function" in the menu interface and choose "Analog chip->Generate analog chip" to generate 46 and 4D chip, then you can generate various car key chip according to demand, for example, 46 chip can be used to generate key chip for vehicle models like Great wall motor, Zotye auto, Geely and etc; 4D chip can be used to generate key chip for Toyota, Lexus, Subaru and etc.

2. Collect data
This function is currently used to collect data to decode chip, and can copy original car chip data after chip is decoded. Boot K518 device, place LKE into the card slot, go to "Special function" in the menu interface and choose "Decode chip", you can decode different types of chip.

3. Detect ignition coil fault and chip type
Boot K518 device, place LKE into the card slot, go to "Special function" in the menu interface and choose "Ignition coil->Detect ignition coil " to detect whether the coil is normal and identify chip type.

4. Upgrade functions
Boot K518 device, place LKE into the card slot, in the interface of "Special function", click function icon, the system  will notify whether to update, click OK to upgrade online directly.

LKE Emulator Key Top Features:

1. Features of Toyota/Lexus smart key all lost (5 emulators-in-1): Toyota/Lexus smart key programming via OBD for all key lost; Support “94/4D, 98/39(128 bit), 88/A8, A9” smart key offline programming via OBD
   Dismantle-free
   No need networking
   Localized computing
2. Generate chip: LKE can be used to work as an emergency key to a program when no dedicated chip.
3. Copy chip: Copy chip via collect and decode chip data (Cover a wide range of vehicle models, faster) By collecting data to decode and copy chips, LKE currently supports some 46 and 4D chip copies.
4. Simulate and convert chip: Use [Generate chip] to make various chips, part of 4D/46 and SKE Toyota currently supported. Generate various kinds of chips in an urgent situation
5. Decode chip: Support code calculation for most 46 smart key and blade keys (include 4D) Decode 46 and 4D chips to obtain SK.
6. Identify ignition coil and key chip type (all key lost): Identify the working statue of the ignition coil and the type of key chip (Support all keys lost)

LKE Emulator Supported Models

How to Use Lonsdor Toyota Emulator?

Boot K518 device, click "Special function" icon and choose corresponding functions (such as Identify© chip, Analog chip, Decode chip, Ignition coil) and operate as per system prompts. When it starts to work, signal light will go on; when at work, the light will flash; when finish work, the light will go out after 3 secs.

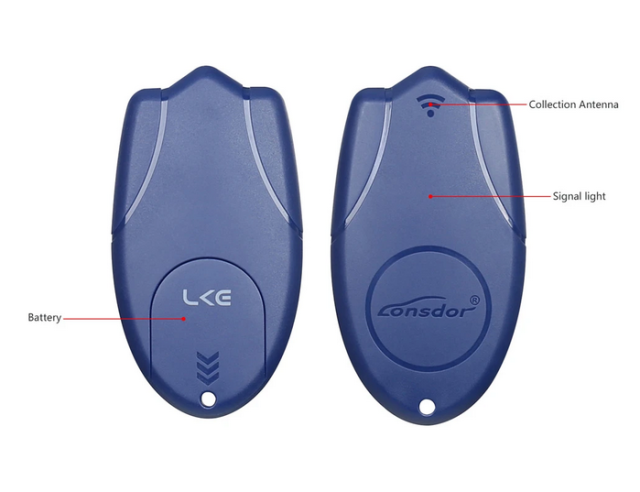

Collection Antenna: place one end of antenna into K518 card slot to operate.

Signal light:
State ① start to work. (the light will go on)
State ② collecting...( the light will flash)
State ③ finished. ( the light will go out after 3 secs)

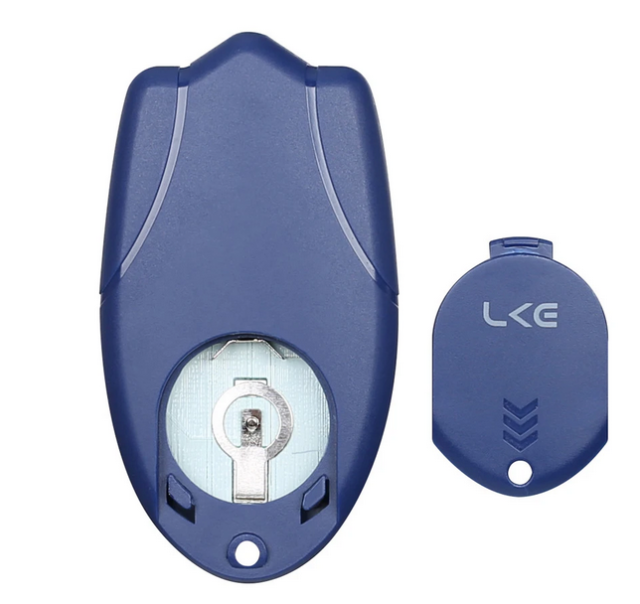

Battery: standard CR2032

Lonsdor LKE Specifications

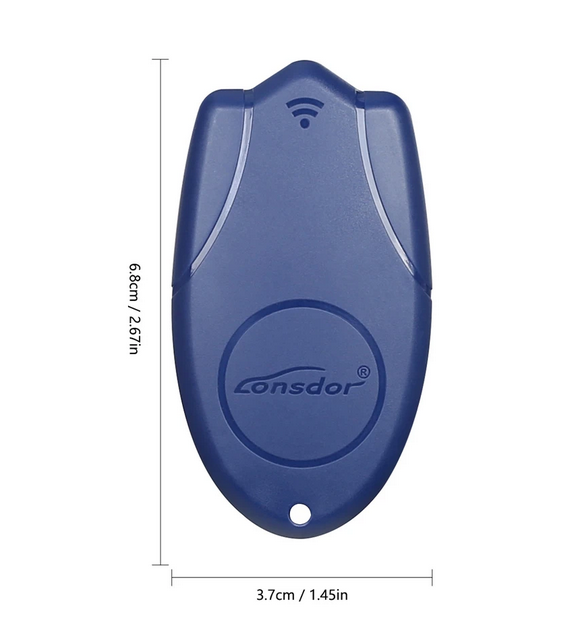

Device size: 68mmX37mmX11mm
Battery: CR2032
Standby current: 3.5ua
Working current: ≤4ma

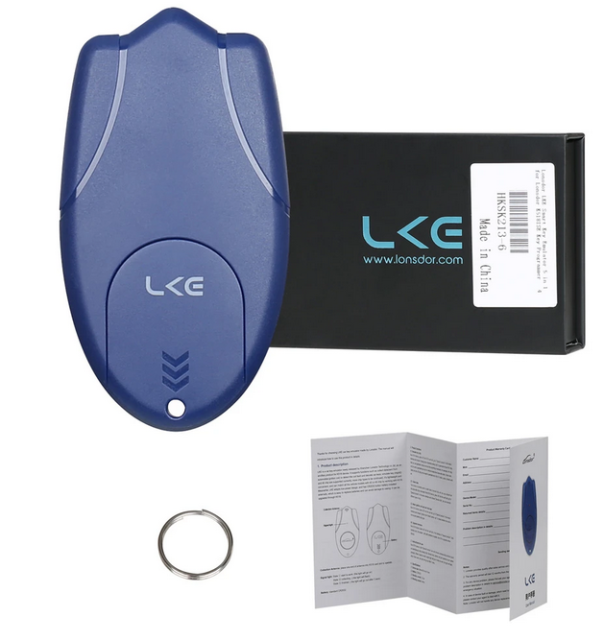

Package includes:

1pc x LKE car key emulator
