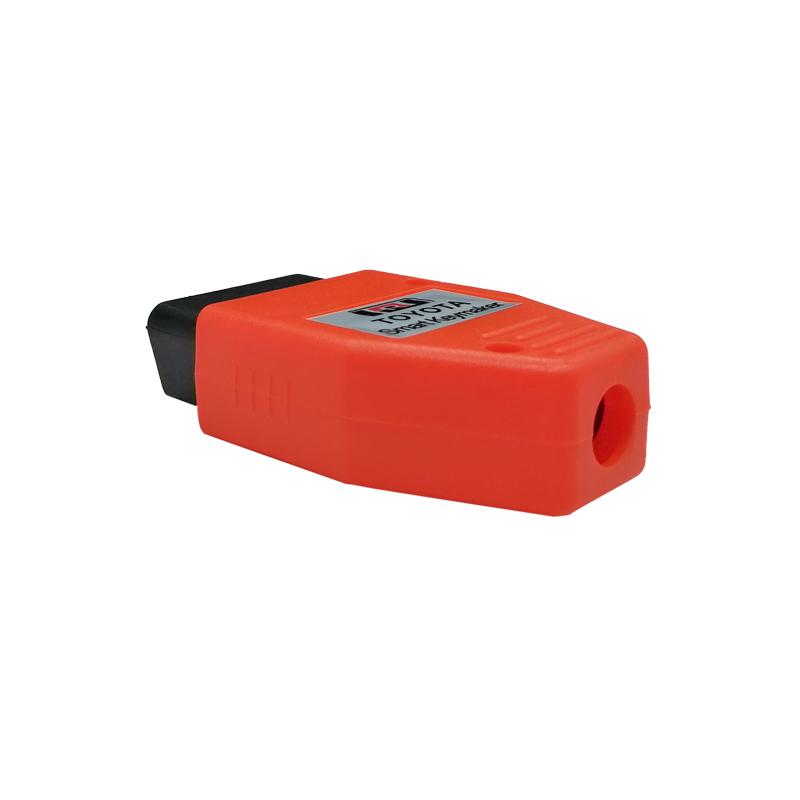

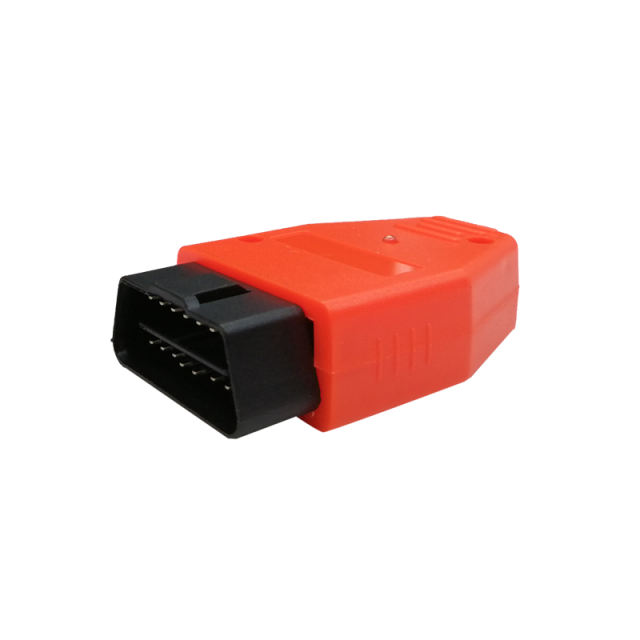

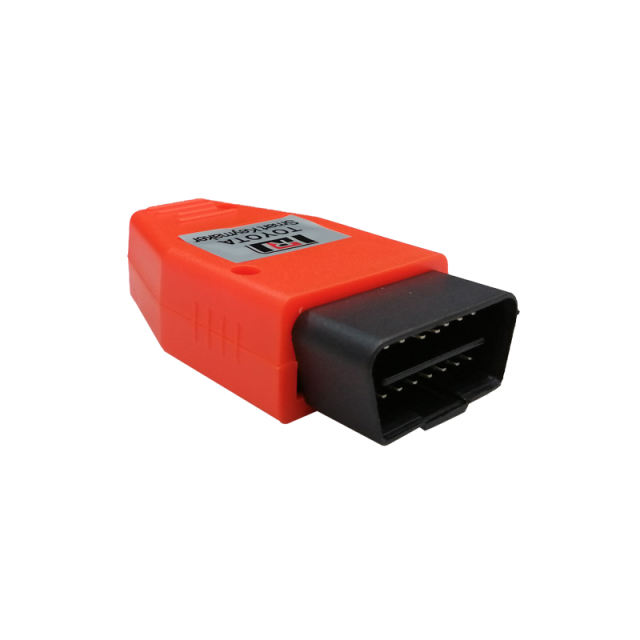

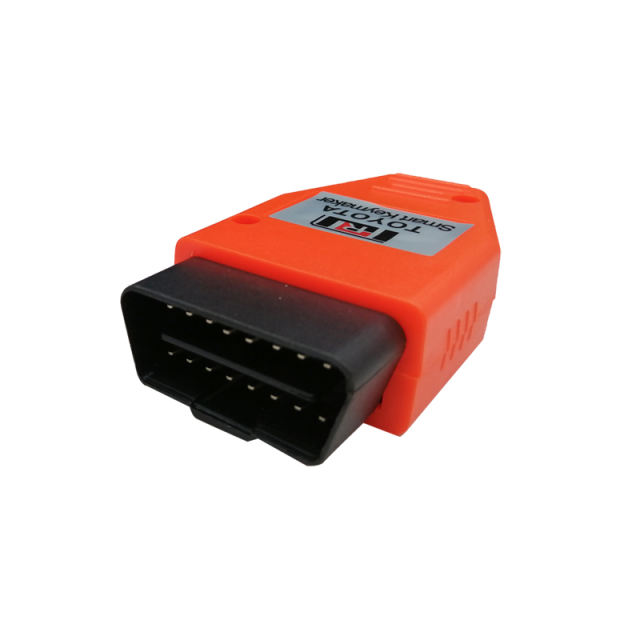

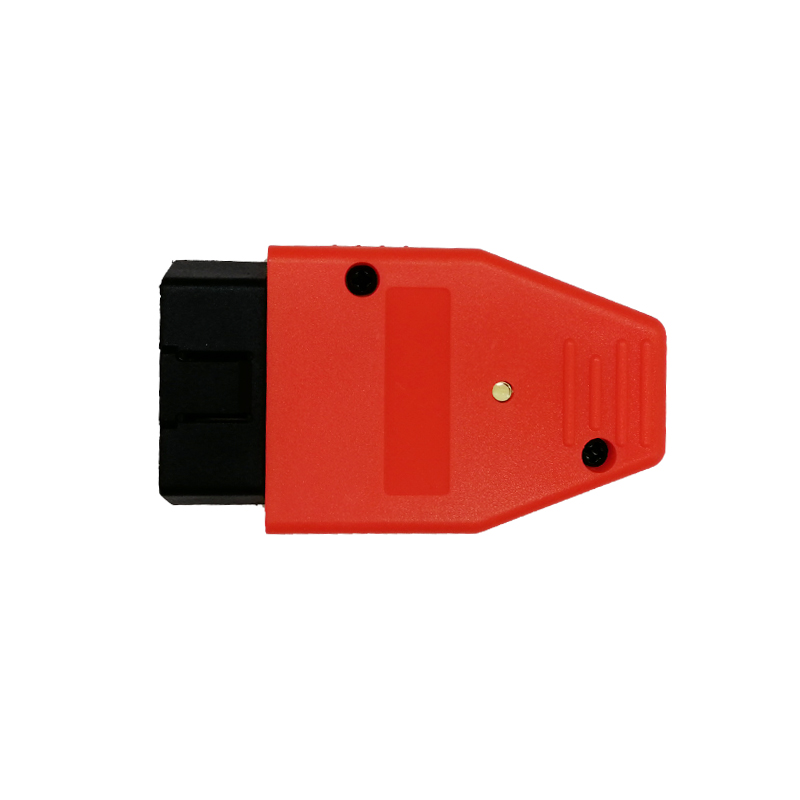

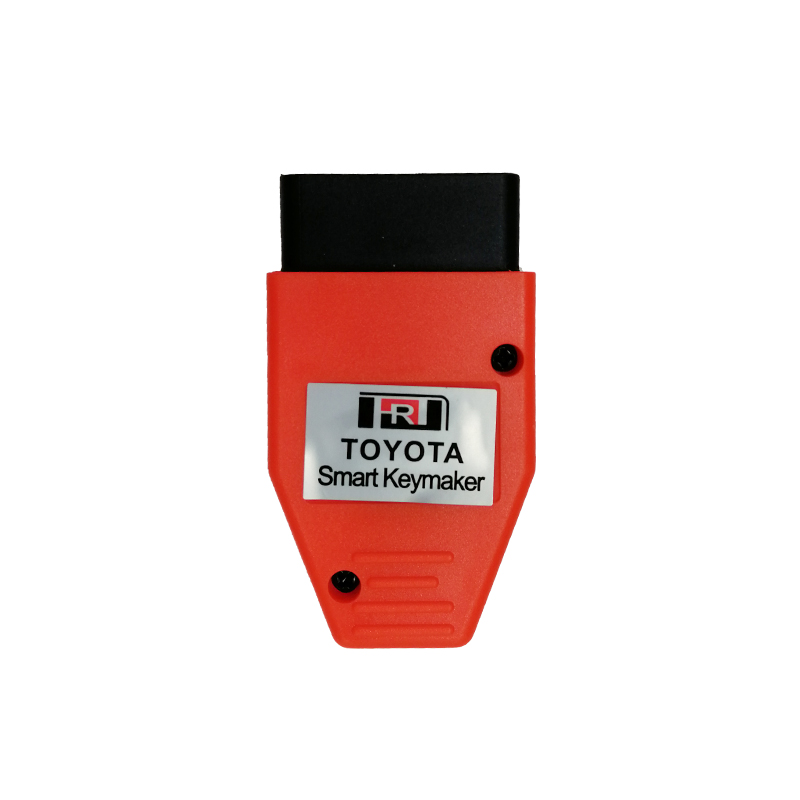

OBDSTAR-02

Name: OBDSTAR-02
Brand: Topwe-Auto Technology Co. Ltd
SKU: 2185
Price: 13.9 USD
Availability: InStock

$13.90 ~~$16.00~~

OBD2 4D Chip 16 Pins Smart Key Maker Programmer For Toyota Lexus

Received successfully

Coupon Code

CONTINUE SHOPPING

Description

OBD2 4D Chip 16 Pins Smart Key Maker Programmer For Toyota Lexus

Smart Key maker OBD FOR Toyota for 4D chip(Support FOR Toyota Lexus Smart Key)

Smart Key maker OBD FOR Toyota for 4D Chip support FOR Toyota and FOR Lexus smart key system,support K line and CAN-BUS protocols.It is a safe and fast key programmer for toyota and lexus 4D chip.It can only work for 4D chip and smart key

Function:

1.Use the main key to add the other keys:

Connect the programmer to the OBD port of the car, there are some short beep sounds after power on, it enters auto search car status.

Press the start button twice to wake up the anti-theft module. When the connection with the module is done successfully after 7 seconds, there is a long beep 4-5 sounds (4 sounds means the system is IV K system, 5 sounds means V CANBUS system). Wait 30 seconds, there are a long beep sounds, it means the car enter into add key state.

2.Add smart key:

put the original car key (with the logo side) access to the start button, you should hear two beep sounds. SEC light will flash twice; within 5 seconds, put the key close to the start button, you should hear 2 beep sound, SEC light will flash twice; after learn all the smart key, wait 30 seconds till SEC light begin flash, and the car will close adaptation mode automatically.

3.All the key was lost or only have vice key, need to do initialization:

Press constantly the LED button, and plug into the OBD port of the car, after two short beep sounds, finish press, it enters into auto search car status.

Press the start button twice, in order to wake the anti-theft computer. When the connection with the Computer of car is done successfully after 7 seconds, there is a long beep 4-5 sound (4 sounds mean the system is IV K system, 5 sounds mean V CANBUS system), 5 seconds later, LED light go out. Wait 10-16 minutes,there are a long beep sounds, and LED light flicker, it means the car enter into study key state.

All keys lost matching mode: Add every smart key which need to program(with the logo side)access to the start button, meanwhile you will here two beep sound. SEC light will shine twice; After you finisher studying all the smart keys, wait 30 seconds till SEC light shining, the system will Auto-close study state

Package list:

1 xfor Toyota 4D Chip OBD2 Keymaker
