OBDSTAR-06B

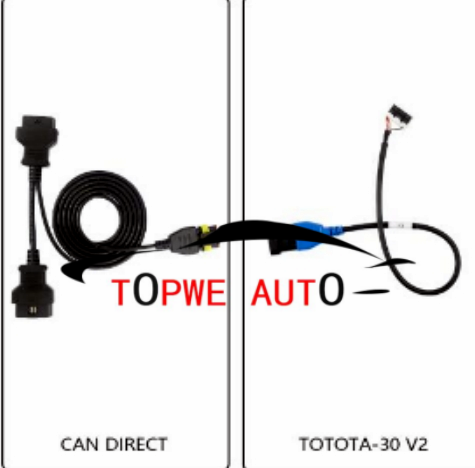

OBDSTAR for Toyota-30 V2 Kit including CAN DIRECT Cable and Toyota-30 V2 Cable for 4A and 8A-BA All Key Lost

OBDSTAR for Toyota-30 cableis mainly used for all keys lost and password-free matching operation of 8A-BA and 4A models of Toyota's latest smart key box with 30 pins. The for TOYOTA-30 cable supports the following models: 2022-Corolla Sharp, Fenglanda, Senna HV, Lingfang, Lingfang HV, Wei HV, Grevia HV, bZ4X, etc. Using Toyota-30 cable, there is no need to break, hook, or plug and unplug wires during operation, and there is no risk of damaging communication wires!

Support Functions

• Proximity key programming (no need pincode)

• Proximity all key lost （need to use with KeySim! ）

Support Models

• 4A models (equipped with TMLF19T type smart key box) :

• AQUA 2022-

• COROLLA CROSS 2022-

• Corolla Cross FACELIFT 2022-

• Corolla FACELIFT 2022-

• YARIS 2020-

• YARIS CROSS 2021-

8A-BA models (equipped with TMLF19D type smart key box):

• BZ4X 2022-

• GRANVIA HV 2022-

• HARRIER 2022-(MXUA80)

• HARRIER HV 2022-(AXUH8#)

• RAV4 PHV 2022-

• SIENNA HV 2022-

• TUNDRA 2021-

• VENZA HV 2022-

• WILDLANDER PHV 2022-

Accessories:

• 1pc*TOYOTA-30 V2 cable

• 1pc*CAN DIRECT cable

How to Use The OBDSTAR CAR Direct & OBDSTAR Toyota 30 Pin Cable V2:

1. Disconnect the 30-Pin Connectionfrom the car’s Smart ID Box.

2. Connect the OBDSTAR 30-Pin Cableto the car's Smart ID Box.

3. Attach the Other Endof the OBDSTAR 30-Pin Cable to the OBDSTAR CAN Direct Cable.

4. Connect the OBDSTAR CAN Direct Cableto the vehicle’s OBD connector and the OBDSTAR OBD connector.

5. Launch the OBDSTAR Tooland follow the on-screen instructions for smart key programming.

OBDSTAR Toyota 30 Pin Smart Key Programming Cable Frequently Asked Questions:

• What is the OBDSTAR Toyota-30 V2 Cable, and what does it do?

  • The OBDSTAR Toyota-30 V2 Cable is a specialized tool for smart key programming on Toyota models. It enables password-free programming without smart box replacement, ensuring a damage-free and efficient process for all Toyota smart key needs.

• Is the OBDSTAR Toyota-30 V2 Cable compatible with all Toyota models?

  • The OBDSTAR Toyota-30 V2 Cable is compatible with a wide range of Toyota models, including the latest versions like the Toyota Corolla Cross 2022+, Toyota Land Cruiser 2021+, and Lexus NX350 2023+, ensuring broad compatibility for smart key programming.

• What is the difference between the OBDSTAR Toyota-30 V2 Cable and the V1 version?

  • The OBDSTAR Toyota-30 V2 Cable offers enhanced functionality compared to the V1. It provides better compatibility with the latest Toyota models and eliminates the need for a pin code during programming, making smart key programming more efficient and user-friendly.

• Do I need the OBDSTAR KEY SIM Simulator to use the OBDSTAR Toyota-30 V2 Cable?

  • Yes, the OBDSTAR KEY SIM Simulator is required for all-keys-lost programming scenarios. It works with the OBDSTAR Toyota-30 V2 Cable to ensure a complete and seamless smart key programming process.

• How do I connect the OBDSTAR Toyota-30 V2 Cable to my vehicle?

  • To connect the OBDSTAR Toyota-30 V2 Cable, first disconnect the 30-Pin Connection from the car’s Smart ID Box, then connect the cable to the Smart ID Box, the OBDSTAR CAN Direct Cable, and the vehicle’s OBD connector to begin smart key programming.

• Can the OBDSTAR Toyota-30 V2 Cable be used for all-keys-lost scenarios?

  • Yes, the OBDSTAR Toyota-30 V2 Cable, when used with the OBDSTAR KEY SIM Simulator, allows for smart key programming in all-keys-lost scenarios, making it an essential tool for locksmiths.

• What vehicles are supported by the OBDSTAR Toyota-30 V2 Cable?

  • The OBDSTAR Toyota-30 V2 Cable supports various Toyota models, including the Toyota Yaris 2020+, Land Cruiser 2021+, and Lexus RX350 2023+, covering a broad range of vehicles for smart key programming.
