OBDSTAR P003+ Adapter for TOYOTA 8A/Ford All Key Lost for Bosch ECU Flash Work with X300 DP Plus/Pro4/DC706 ECU CS PIN Reading

Received successfully

Coupon Code

CONTINUE SHOPPING

Description

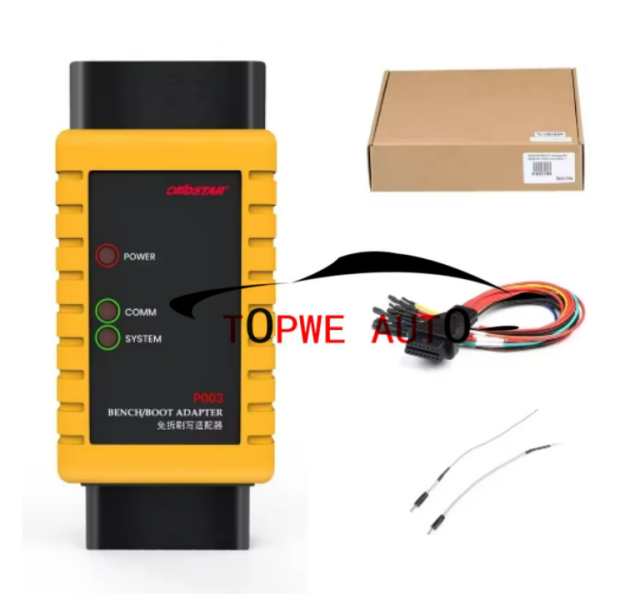

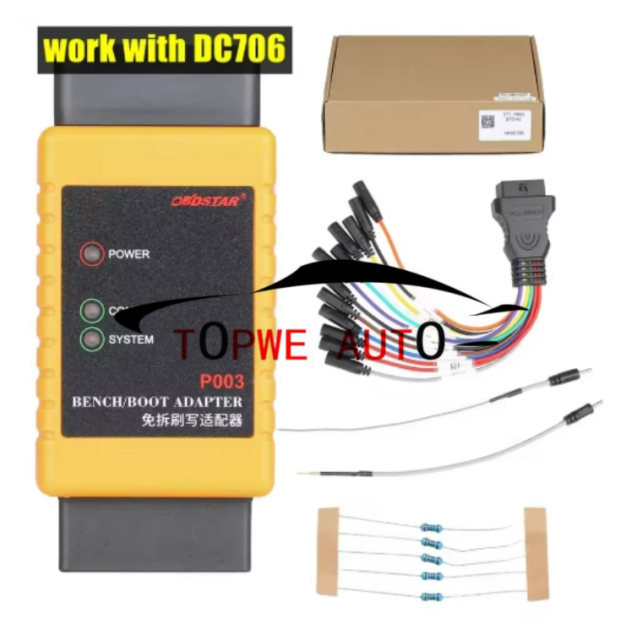

OBDSTAR P003 Adapter with ECU Bench Cables

For reading B-O-SCH ECU data, CS, PIN code etc., including FOR A-u-di, Cit-roen, DS, Ma-hindra, Peu-geot, S-k-oda, S-EAT, V-o-lk-swagen etc.

Works together with OBDSTAR X300 DP/ X300 DP PLUS/ X300 PRO4/ DC706

OBDSTAR P003 Kit Supported ECU List:

Supports ECU including B-O-SCH EDC17U01(TC1766), MED17.5(TC1766), MED17.5.1(TC1766), MED17.5.20(TC1766), MED17.5.5(TC1766), MED17.5.5 HW2(TC1766), EDC17C46(TC1767), ME17.5.6(TC1767), ME17.5.20(TC1767), MED17.5.2(TC1767), MED17.5.5(TC1767), MED17.5.5 HW2(TC1767), MED17.5.21(TC1782), MED17.5.25(TC1782), EDC17C54(TC1797), EDC17C64(TC1797), EDC17CP44(TC1797), EDC17CP44 MS(TC1797), ME17.1.1(TC1797), ME17.1.6(TC1797), MED17.1.1(TC1797), MED17.1.1 MS(TC1797), MED17.1.6(TC1797), MED17.4.4(TC1793), MD1CS018(Euro 6/TC298TP), MG1CS042(Euro 6/TC298TP), MG1CS003(Euro 6/TC298TP) etc.

1. Continental PCRfor 2.1(TC1796)
for 2010-2014 Audi A1 (8X) 1.6L Diesel
for 2009-201for 2Audi A3 (8P) 1.6L Diesel
for 2009-2013 Seat Altea 1.6L Diesel
for 2010-2016 Seat Ibiza IV (6J) 1.6L Diesel
for 2010-201for 2Seat Leon II 1.6L Diesel
for 2014 Seat Toledo (KG) 1.6L Diesel
for 2010-2013 Skoda Octavia II (1Z) 1.6L Diesel
for 2010-2013 Skoda Fabia II (5J) 1.6L Diesel
for 2010-2011 Skoda Roomster (5J) 1.6L Diesel
for 2013-2014 Skoda Rapid (NH) 1.6L Diesel
for 2011-2013 Skoda Superb (3T) 1.6L Diesel
for 2012/2015 Skoda Yeti (5L) 1.6L Diesel
for 2010-2015 VW Caddy (for 2K) 1.6L Diesel
for 2009-2013 VW Golf VI 1.6L Diesel
for 2010-2013 VW Golf Plus 1.6L Diesel
for 2011-2014 VW New Beetle (9C) 1.6L Diesel
for 2011 VW Passat (B7) 1.6L Diesel
for 2009-for 2014 VW Polo V 1.6L Diesel
for 2010-for 2015 VW Touran (1T) 1.6L Diesel

2. B-o-sh MED17.4.4(TC1793)

for Citroen
for Citroen C3 Mk2

for Citroen C4 Gran Picasso

for Citroen C4 MK2

for Citroen C5 (RD/TD)

for Citroen C6

for DS
for DS DS3

for DS DS5

for DS DS6

for Peugeot
for Peugeot 2008

for Peugeot 208

for Peugeot 3008 (P84)

for Peugeot 3008 (T84)

for Peugeot 308 (T9)

for Peugeot 4008

for Peugeot 408

for Peugeot 508

3. Bo-sh EDC17C60(TC1793)

for Citroen
for Citroen Berlingo

for Citroen C-Elysee

for Citroen C3 Aircross

for Citroen C3 MK2

for Citroen C3 Picasso

for Citroen C4 Cactus

for Citroen C4 MK2

for Citroen C4 Picasso

for Citroen Jumpy

for Citroen Spacetourer
for DS
for DS DS3

for DS DS4

for DS DS5

for Peugeot
for Peugeot 2008

for Peugeot 208

for Peugeot 3008 (P84)

for Peugeot 308 (T9)

for Peugeot 5008 (T87-P87)

for Peugeot 508

for Peugeot Expert

for Peugeot Ranch/Partner

for Peugeot Traveller
for Opel/Saturn/Vauxhall
for Opel/Saturn/Vauxhall Combo E

for Opel/Saturn/Vauxhall Crossland X

for Opel/Saturn/Vauxhall Grandland X

for ToyotaProace

4. Bo-sh MD1CS018

for Mahindra BS-6

5. Bo-sh MED17XX/EDC17XX
for EDC17U
EDC17U01(TC1766)

EDC17C46(TC1767)

EDC17C54(TC1797)

EDC17C64(TC1797)

EDC17CP44(TC1797)

EDC17CP44 MS(TC1797)
for MED
MED17.5(TC1766)

MED17.5.1(TC1766)

MED17.5.20(TC1766)

MED17.5.5(TC1766)

MED17.5.5 HW2(TC1766)

MED17.5.2(TC1767)

MED17.5.5(TC1767)

MED17.5.5 HW2(TC1767)

MED17.5.21(TC1782)

MED17.5.25(TC1782)

MED17.1.1(TC1797)

MED17.1.1 MS(TC1797)

MED17.1.6(TC1797)

for VW/Skoda/Audi/Seat, Bentley, Lamborghini, Porsche...

6. Bo-sh ME17XX

for ME17.5.6(TC1767)

for ME17.5.20(TC1767)

for ME17.1.1(TC1797)

for ME17.1.6(TC1797)

for VW/Audi/Skoda/Seat, Bentley...

OBDSTAR P003 Kit Functions

1. Continental PCR 2.1 reading CS, PinCode, MAC valueP003 KIT
2. FOR B-o-sch MED17.4.4 reading eeprom , PinCodeP003 KIT
3. FOR B-o-sch EDC17C60 reading eeprom , PinCodeP003 KIT
4. FOR B-o-sch MD1CS018 reading eeprom, PinCodeP003 KIT
5. FOR B-o-sch MED17XX/EDC17XX reading eeprom, flash, CS, PinCode, MAC value
6. FOR B-o-sch ME17XX reading & writing eeprom, flash
7. T87A, 6HP reading & writing TCM eeprom, flash

OBDSTAR P003 Kit Specifications:

Voltage	12V
Weight	100g
Dimension	1137531mm

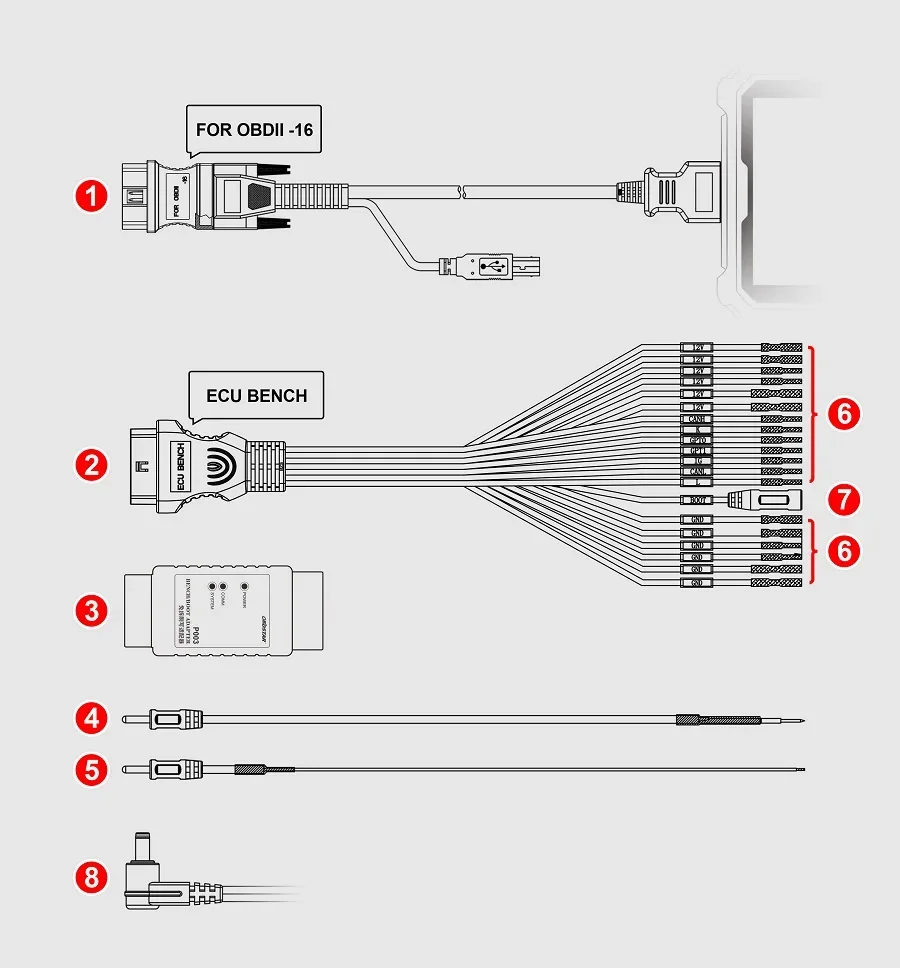

How to connect the P003 adapter and ECU BENCH cables with OBDSTAR tablet devices?

1. Diag cable OBD connector(male)
2. Connect P003 connector(female)
3. P003 adapter
4. Boot jumper(spring needle)
5. Boot jumper(welding)
6. ECU pin connector
7. ECU boot connector
8. 12V power

Bench Mode:

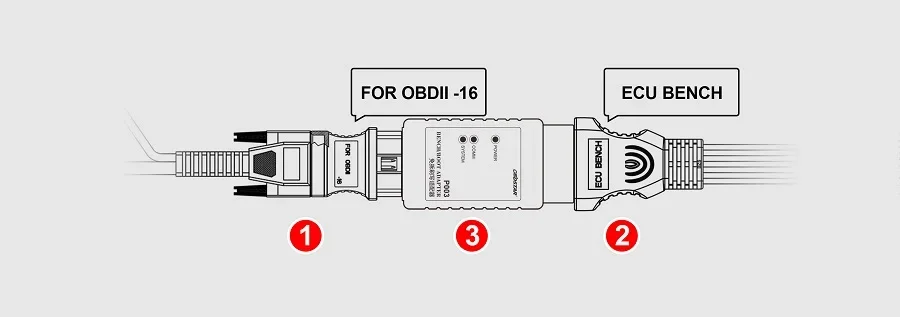

Step 1: Connect 1, 2, 3 together as pic below;

Step2: connect the ECU pin connector to the ECU according to the wiring diagram;
Step3: connect 12V power with diagnostic device;
Step4: read data

Boot Mode:
Step 1: Connect 1, 2, 3 together as pic below;

Step2: connect the ECU pin connector to the ECU according to the wiring diagram;
Step3: connect 7 with 4 or 5 and connect it to ECU;
Step4: connect 12V power with diagnostic device;
Step5: read data on diagnostic device.

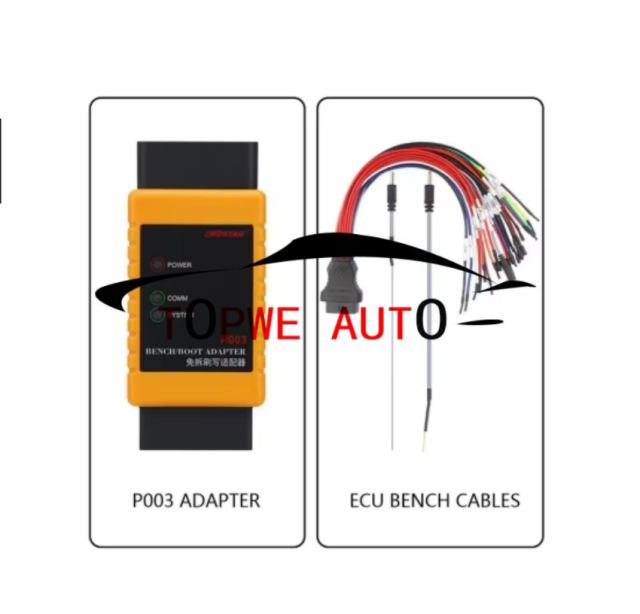

Package List:

1pc x P003 adapter

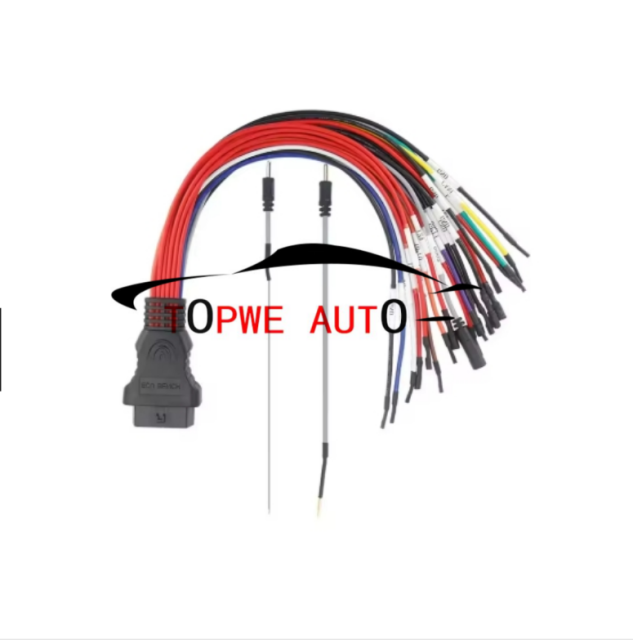

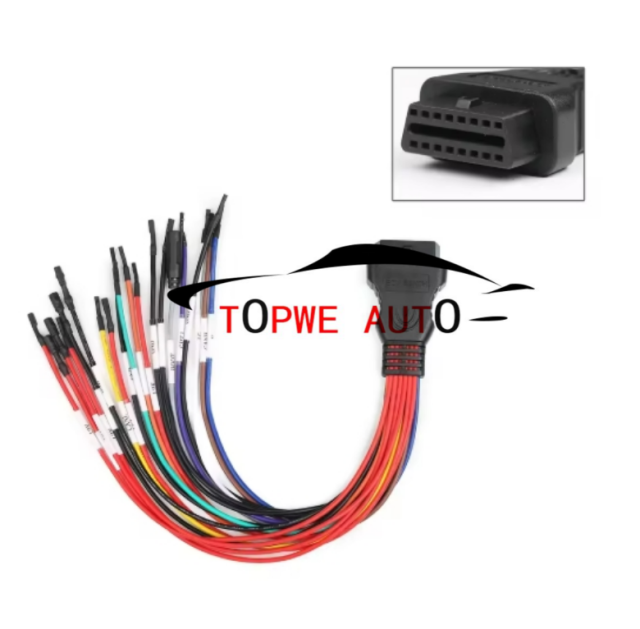

1 set x ECU BENCH cables
