XTOOL-02B

Name: XTOOL-02B
Brand: Topwe-Auto Technology Co. Ltd
SKU: 3706
Price: 213 USD
Availability: InStock

$213.00 ~~$225.00~~

XTOOL KS-1 Smart Key Emulator for Toyota/Lexus All Keys Lost No Need Disassembly Work with X100 PAD2/PAD3

Received successfully

Coupon Code

CONTINUE SHOPPING

Description

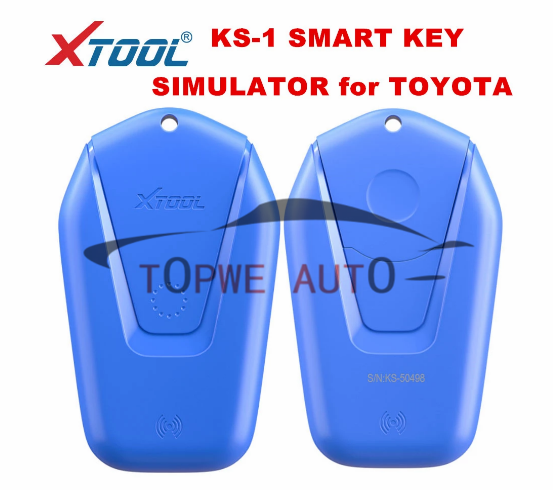

XTOOL KS-01 for Toyota/Lexus Smart Key Simulator for All Keys Lost work with X100 PAD2

Once all the for Toyota or for Lexus keys are lost, the smart box and other modules in the car need to be disassembled, then turn on the ignition switch, so that the smart key can be removed and added, and the operation is tedious.
Xtool KS - 01, the five- in- one simulation card can eliminate the need to disassemble the smart box and other modules. As long as the original car data is read from the OBD to generate the simulation card, the ignition switch can be turned on to realize the function of clearing and adding the smart key.

The free disassembly for all keys lost requires an original car key. By reading and decrypting the original car anti-theft data, writing the data to the simulation card is equivalent to generating an original car key. Then you can follow the key addition process.

Supports for Toyota 94 / D4, 98, 39, 88 / A8, A9 type smart key all key lost programming.
The simulation card can be reused. After matching the key, turn off the power or remove the battery to restore the initial state.
Support generation, copy and simulation of key chip.

KS-1 Emulator Features:

1. For Toyota/Lexus All Key lost No disassembly
2. Support For Toyota/Lexus all lost and dismantled, read the original car data from OBD to generate emergency simulation key, directly drive the car without disassembly, intelligent and efficient
3. Intelligently generate new keys
4. Through the reading of the original car data, a smart key is generated, which can then be operated according to the process of adding a key, supporting the generation, copying, and simulation functions of the key chip.
5. More Cars
6. Support For To-yot-a 94 / D4, 98, 39, 88 / A8, A9 type smart keys all lost matching, matching speed is fast.
7. Reusable
After matching the key, turn off the power or remove the battery to restore the initial state

Compatible with these devices

XTOOL X100 PAD2 （need buy kc100）
X100 PAD2 PRO
A80（need buy kc100）
PS90（need buy kc100）,
H6（need buy kc100）
X100 PAD3,
X100 PAD Elite（need buy kc100）

The key type has been tested

Vehicle	Year	Key Type	Support or not	Remarks
RAV4	2015	88	Yes
Alphard	2013	94	Yes
Alphard	2015	A9	Yes
Previa	2008	94	Yes
Crown	2010	98	Yes
Crown	2015	A9	Yes
Crown	2016	A8	Yes	After 2016, Toyota crown is not supported TANGO, K518 even rival products are not supported
Prado	2011	98	Yes
Previa	2013	94	Yes
Reiz	2011	98	Yes
Innova		39	Yes	The car is being tested for the Indian Tango

Xtool KS-1 Simulator Specifications

Parameter	Index
Battery	CR2025 3V 165mAh
Standby current	Standby current≤2μA
Reading and writing frequency	125kHz
Status indicator lamp	1pc (mode: turn on and light up for 2s and then extinguish; Flicker, flash, 0.5s/ time when writing or reading)
Update	The simulation card firmware can be updated with KC100
Working temperature	-20℃~60℃
Storage temperature	-20℃~70℃

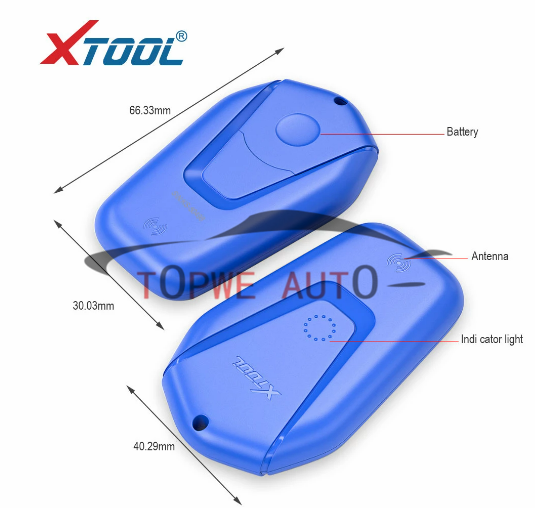

Structure size	66mm40mm12mm

Package includes:

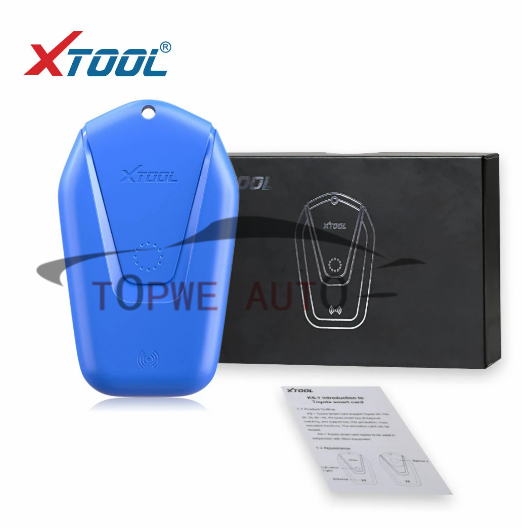

1pc x XTOOL KS-1 for TOYOTA SMART KEY SIMULATOR
