XTOOL AnyToyo SK1 Auto key Coding for Toyota 8A/4A Smart key

Received successfully

Coupon Code

CONTINUE SHOPPING

Description

Description

Report this item or seller

Product Introduction

XTOOL tablet, Internet connection and a KC501 key programmer, you can generate an emulated Toyota 4A/8A
smart key without searching for pincode, which could be used for emergency ignition or act as an original key in
order to add keys when there are no original keys available. With our programmable keys, you can also generate
a 4A/8A smart key which is matched on this car without searching for pincode or connecting to the module.
The emulated data will be erased from the emulator once it is disconnected to XTOOL devices.

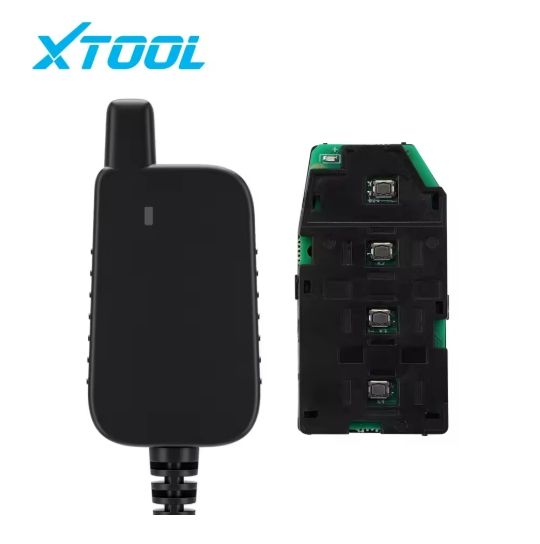

① Antenna: Used to collect data and emulate key data.
② Light: When connected, the green light will be turned on.
When collecting data, the green light will flicker, then goes off once it is done
collecting.
③ USB 3.0 Port: Used to connect to the XTOOL devices.
When using XTOOL tablets with Type-C ports, please connect the USB3.0 to
Type-C adapter before use

How to Use

1. Collecting data from start/stop button:
· Connect emulator to the tablet and start the process
· When the notice pops up from the tablet, put the antenna close to
the start button
· The light will flicker when collecting and goes off when finished
collecting

2. Collecting data / emergency start from low-frequency antenna:
· The antenna usually locates at:
1） At the front, beneath the armrest storage area
2） In the middle, under the backseats
3） Door handle (for models with keyless entry)
· Connect emulator to the tablet and start the process
· When the notice pops up from the tablet, put the antenna
close to the low-frequency antenna
· The light will flicker when collecting and goes off when finished collecting
· After collecting data, put the emulator close to the antenna and press the start button to do an
emergency start.
